| [데이터로거] HIOKI 8870 히오끼 데이터로거 1MS/s의 정밀 측정 [중고 계측기 렌탈 판매] | |
|---|---|
| 작성자 관리자 작성일 25-11-05 10:04 조회수 95 | |
| 참고링크 | https://blog.naver.com/sktmzja2841/224064157552 72회 연결 |
본문

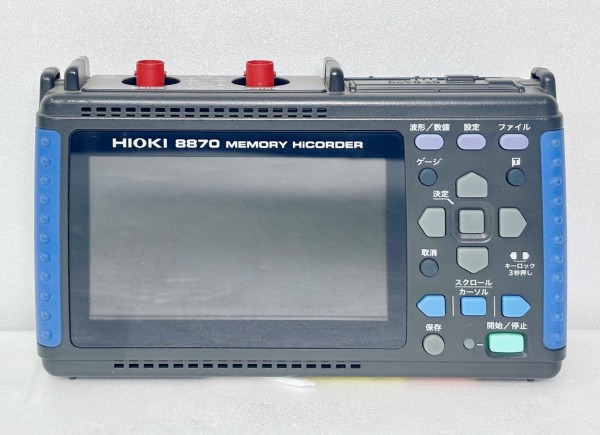

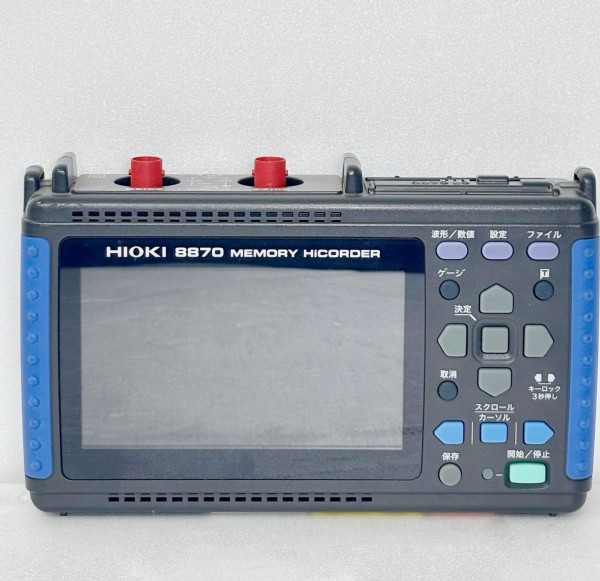

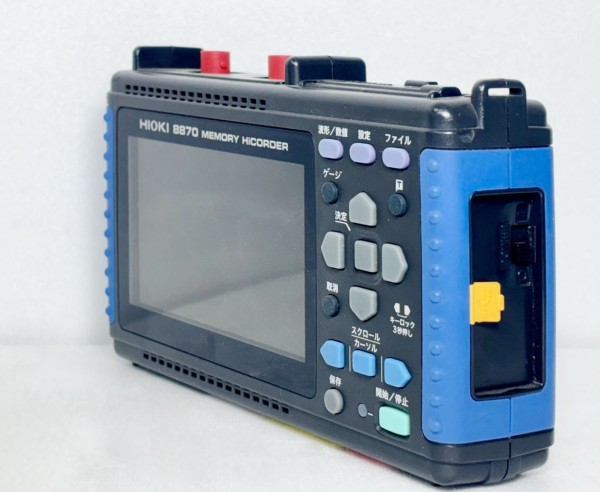

Hioki MR8870-20 Memory HiCorder - Key Specifications
-
Channels: 2 Analog + 4 Logic Channels
-
Sampling Speed: Up to 1 MS/s (1 μs interval)
-
Memory: 2M Words × 2 Channels
-

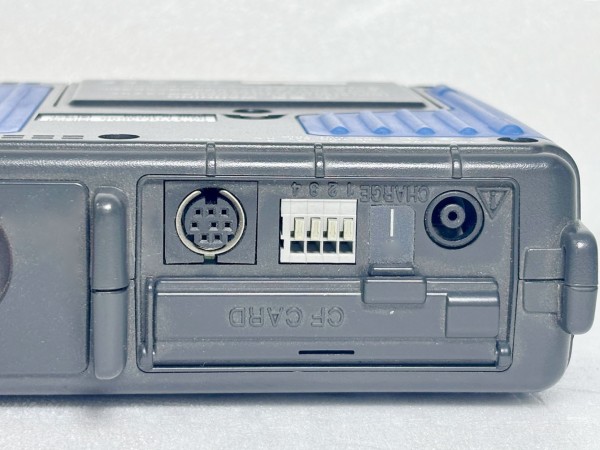

Storage: CF Card (Supports FAT/FAT32, up to 2GB)
-

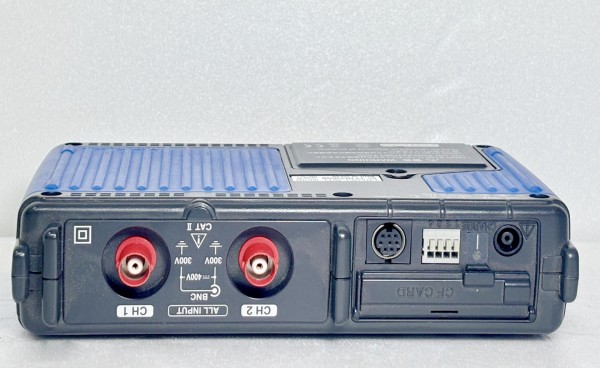

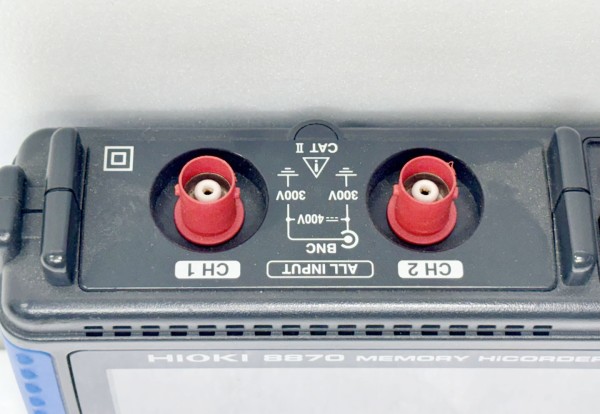

Input Connector: Isolated BNC, 1MΩ, 7pF
-

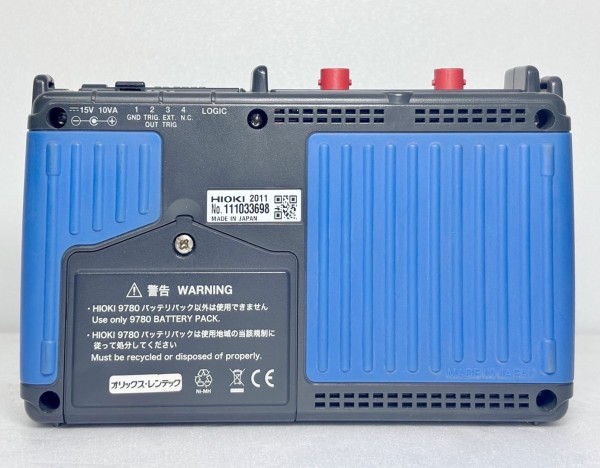

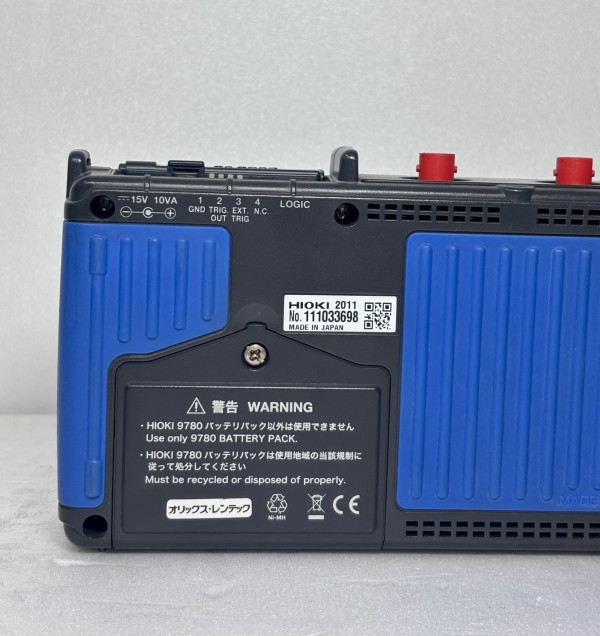

Power Supply: AC Adapter (included), Battery Pack (optional), DC 10–16V
-

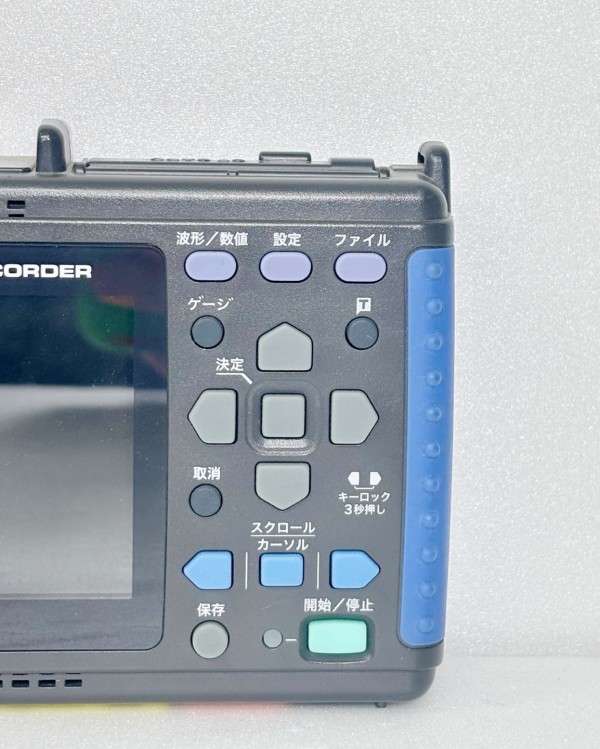

Display: 4.3" TFT LCD (480×272 pixels)
-
Operating Environment: 0–40°C, 80% RH max (non-condensing)
-
Dimensions: 176 × 101 × 41 mm
-
Weight: Approx. 600 g
